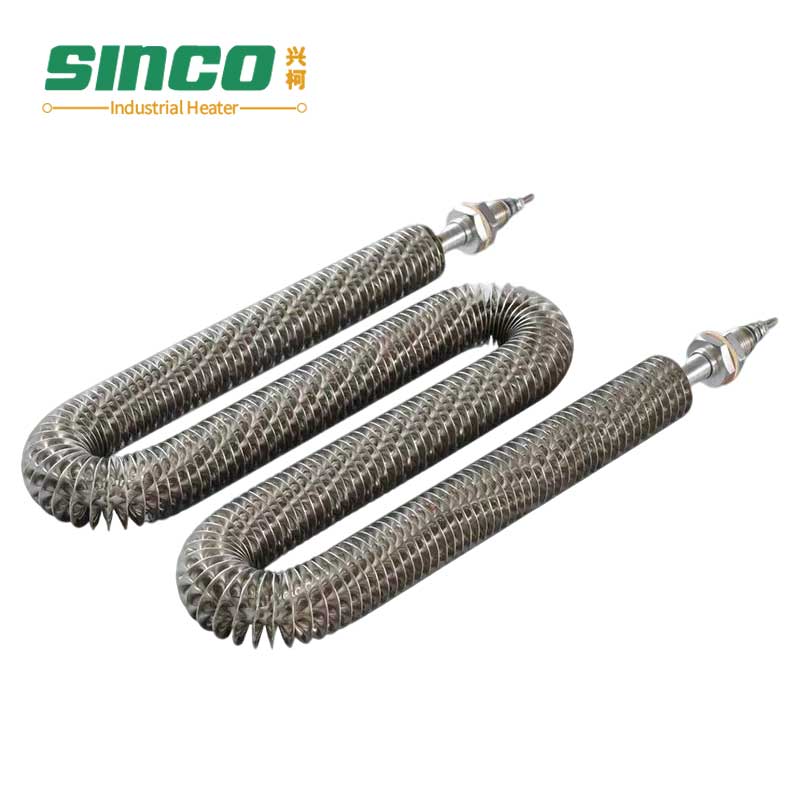

220V Industrial Electric Fin Heating Element Finned Tubular Heater for Laminating Machine Drying Roller
XK cartridgeheater
Proven Quality. Trusted Results.
Tubular heaters offer efficient and reliable heat transfer, making them suitable for applications such as air heating, immersion heating, and process heating. Their compact size and flexibility in design allow them to be easily integrated into different systems and equipment.
Description
-
MOISTURE PROOFING
-
Silicone seals to ensure moisture resistance in humid environments.
-
CUSTOM NON-HEATING PARTS
Non-heating part length could be customized.
-
FITTINGS FLEXABILITY
Xingke provides great flexibility of terminations and fittings for different applications.
-
SHEATH WALL THICKNESS
Thicker sheath wall are available for intensive applications.
-
SHEATH MATERIAL
-
Material
Applications
Copper
Water, oil, grease
Stainless Steel (304, 310, 316)
Corrosive liquids, food processing equipment, alkaline cleaning solutions, tars, asphalt or air heating
Incoloy (800, 840)
Cleaning and degreasing solutions, corrosive liquids
Titanium
Corrosive liquids
-
Technical Parameters
-
Technical Parameters
Tube Diameter
Φ3mm – Φ25mm (Standard 6.5/8/9.5/10/12.7/16mm)
Voltage
12V/24V/36V/110V/220V/230V/240V/380V
Wattage Density
2 – 30W/cm²
Wattage Tolerance
±10%
Max. Temperature
850℃
Length Tolerance
±1.5%
Insulation
High purity MgO (A grade)
Resistance Wire
Nickel chromium resistance wire (Ni80Cr20)
Sheath Materials
Copper, Titanium, 304 Stainless Steel, 310 Stainless Steel, 316 Stainless Steel, Incoloy800, Incoloy840
-
Features
-
1. Flexibility in terminations, shapes and diameters
2. High load capacity
3. High temperature
4. Moisture proofing
5. Efficient heat transfer
6. Durable
7. CE & RoHS approved
-
Design Details
-
Please provide the following information:
1. Heating medium and operating temperature
2. Voltage and phase
3. Rating power
4. Mounting method
5. Sheath material
6. Detail dimensions
-
Note: More detailed application information you provide, the better customized design and perfect fitting performance you will get.
-
FAQ
-
Q1: Can you supply customize service?
A: Yes, we can supply OEM & ODM service according to your drawings or requirement.
Q2: How long can i get the order?
A: The delivery time depends on order quantity.Normally can be ready within 7-15 working days.
Q3. How can you guarantee quality?
A: We strictly follow the agreed product parameters and material performancenn.Before delivery, we will take photos and ask you to verify the product information. If you have any other questions,please feel free to contact us.
-
