Industrial Electric Flange Tubular Immersion Heater for Water or Oil Heating Element
XK cartridgeheater
Proven Quality. Trusted Results.

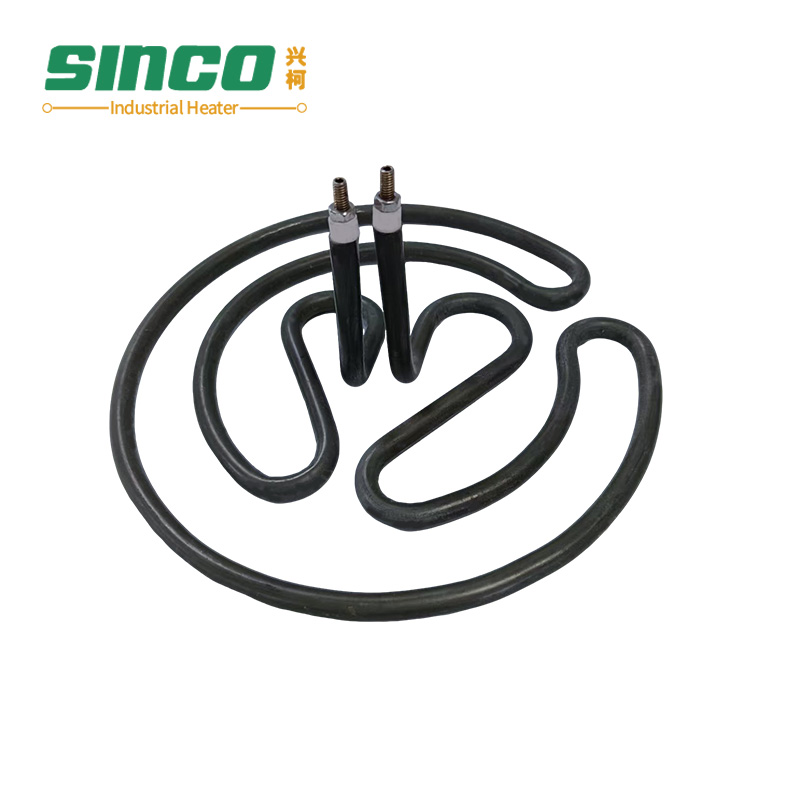

Tubular heaters offer efficient and reliable heat transfer, making them suitable for applications such as air heating, immersion heating, and process heating. Their compact size and flexibility in design allow them to be easily integrated into different systems and equipment.
Description
-
FLANGE HEATERS
-
Mounted on the side of tanks, it is extremely strong and provides excellent heat. Flange plate size, thickness and shape are determined by the application.
-
OVER THE SIDE HEATERS
A practical method of heating open tanks from the top (typically). It offers the ability to use this heater for multiple tanks while other immersion heaters can’t be conveniently installed.
-
SCREW PLUG HEATERS
These heaters screw into your tank and provide heat to liquids in smaller tanks and compartments. They are installed into threaded openings or couplings in the tank or vessel.
-
CORROSIVE LIQUID HEATERS
Corrosion resistant sheath materials and special surface treatment are available so the heaters could be used in corrosive environments and have longer service life.
-
THERMO CONTROL
-
In order to achieve temperature control, overheat protection and longer life of the heaters, a thermostat or thermocouple could be integrated into the heaters.
-
CUSTOM NON-HEATING PARTS
-
No-heat parts could be customized for different applications.
-
Technical Parameters
-
Technical Parameters
Tube Diameter
Φ6mm ~ Φ67mm
Voltage
110V/220V/230V/240V/380V/415V
Power
1kW ~ 120kW
Watt Density
30W/cm²
Wattage Tolerance:
+5%, -10%
Length Tolerance
±1.5%
Resistance Wire
Nickel chromium resistance wire (Ni80Cr20)
Sheath Materials
Copper, Titanium, 304 Stainless Steel, 310 Stainless Steel, 316 Stainless Steel, Incoloy 800, Incoloy840
Surface Treatment
Polishing, coating, plating
-
Sheath Materials
-
Sheath Materials
Application
Copper
Water, non-corrosive liquids
Stainless Steel (304,310,316)
Process water, corrosive liquids, oils, acid, alcaline baths, asphalt, wax, heavy fuel, food processing equipment
Incoloy (800, 840)
Water, oils, asphalt, wax, heavy fuel
Titanium
Highly corrosive liquids
-
Features
-
1. Virtually 100% energy efficient
2. Provide uniform temperature
3. Can be formed and shaped into various geometries
4. Easy to install, remove and maintain
5. Oxidation and corrosion resistant
6. Durable
-
Design Details
-
Please provide the following information:
1. Heating medium and operating temperature
2. Voltage and phase
3. Rating power
4. Mounting method
5. Sheath material
6. Detail dimensions
7. With or without temperature control
-
Note: More detailed application information you provide, the better customized design and perfect fitting performance you will get.
-
FAQ
-
Q1: Can you supply customize service?
A: Yes, we can supply OEM & ODM service according to your drawings or requirement.
Q2: How long can i get the order?
A: The delivery time depends on order quantity.Normally can be ready within 7-15 working days.
Q3. How can you guarantee quality?
A: We strictly follow the agreed product parameters and material performancenn.Before delivery, we will take photos and ask you to verify the product information. If you have any other questions,please feel free to contact us.
-
Any enquiry, please email daniel@xkcartridgeheater.com .
-
